AZEVAP - 18,000 - 24,000 Horizontal and Vertical Discharge Coolers

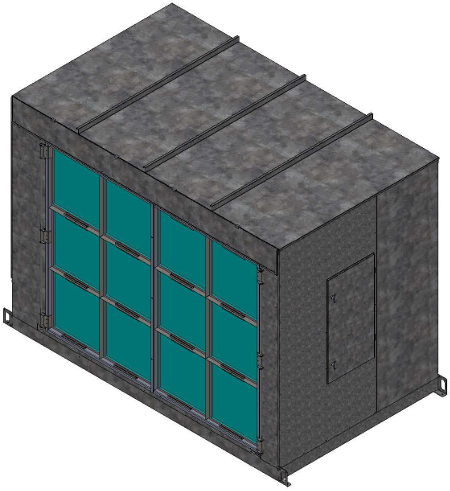

azflow horizontal 24k Iso

Horizontal Discharge Cooler Click Thumbnails for Alternate Views

thumb24KHorizIso thumb 24K controls side thumb24Khoriz Back thumb 24K horiz Section View

Vertical Discharge Cooler Click Thumbnails for Alternate Views

24K Vert Iso thumb vert control side thumb 24K vert bottom Thumb 24K vert section

18,000 and 24,000 CFM UNITS

User Selection Attributes:

  • Horizontal Discharge for Wall Mount
  • Vertical Discharge for Roof Mount
  • Blower Static Head (Duct and Diffuser Losses)
  • With or Without Damper Isolation

Options:

  • Washable inlet Air Filter or Louvered Inlet
  • Graded Materials or All Stainless Steel
  • Filter Differential Pressure Sensor Package
  • Building Differential Pressure Sensor Package
  • Building Area Temperature Sensor Package

Key Dimensions and Weight:


Cooler
CFM
Discharge
Orientation
Width
(inches)
Length
(inches)
Height
(inches)
Weight
(Pounds)
18,000 Horizontal 71 96 90 1700
18,000 Vertical 90 127 90 2020
24,000 Horizontal 71 96 90 1930
24,000 Vertical 102 127 90 2500
